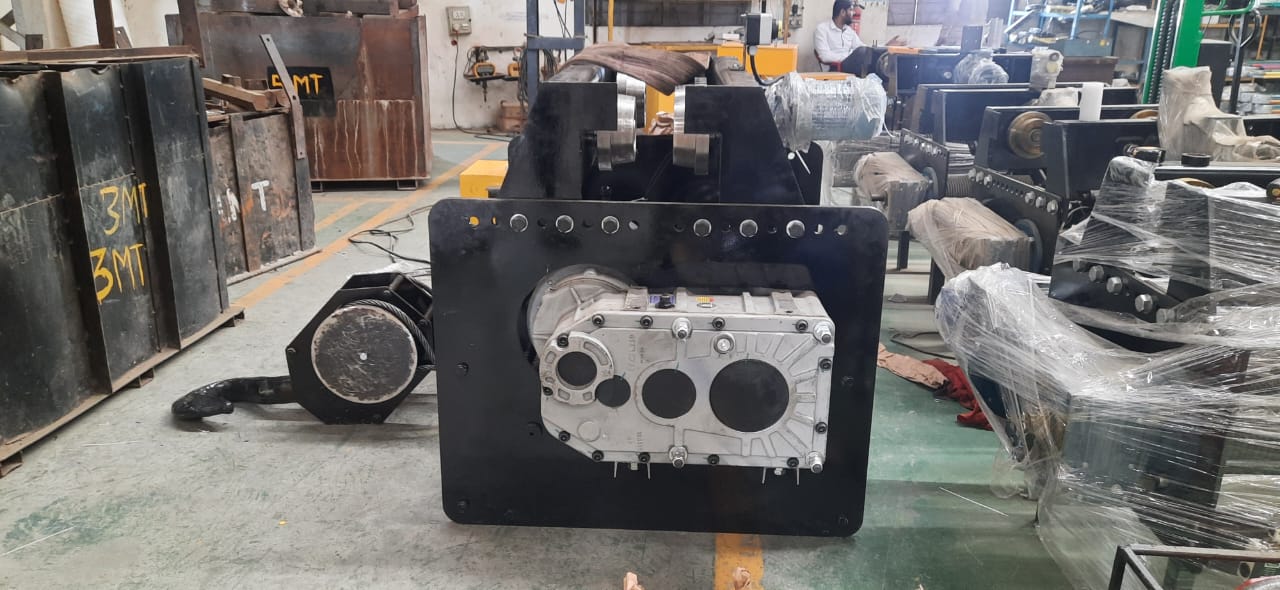

Curvature Type Wire Rope Hoist

Product Description

Curvature Type Wire Rope Hoist

TOP Crane Manufacturer of Curvature Type Wire Rope Hoist and Flexible Wire Rope Hoist with capacities from 0.25 Ton to 50 Ton. We are providing our clients a comprehensive range of Electric Wire Rope Hoist on Curvature or Flexible Trolley. The Curvature Wire Rope Hoist is designed and developed using high quality material. It is highly appreciated for its high performance, easy installation, ability to withstand adverse conditions and longer service life.

We offer this Wire Rope Hoist with Flexible Trolley in various specifications to cater to the various needs of the clients. It is stringently tested by our quality controllers to ensure consistent performance at the users end.

Best Mechanical Strength

Easy to Operate

High Qulity

Market Leading Product

Curvature Type Wire Rope Hoist

Product Features

Capacities from 0.25 Ton to 50 Ton.
Rugged construction conforming to IS 3938.
Totally enclosed Gearbox with precision machine cut gears and pinions.
Rope Drums made from seamless pipe.
Assembly facilitating easy maintenance.
Ac Squirrel Cage Motors with high starting torque to work on 415V, 3Ph, 50Hz power supply.
Shafts mounted on anti friction bearings.
Safety latches on hook.
Hook supporting on thrust bearings for 360 Degree swivel.
Disc type / Shoe type Electro Magnetic Brakes for hoisting & cross travel motions.
Limit Switches for upper and lower limits for safe operation.
Micro speed for hoisting and cross travel (C.T.) shall be provided if required by means of VVFD Drive / Micro Speed Gearbox.
