Jib Crane

Product Description

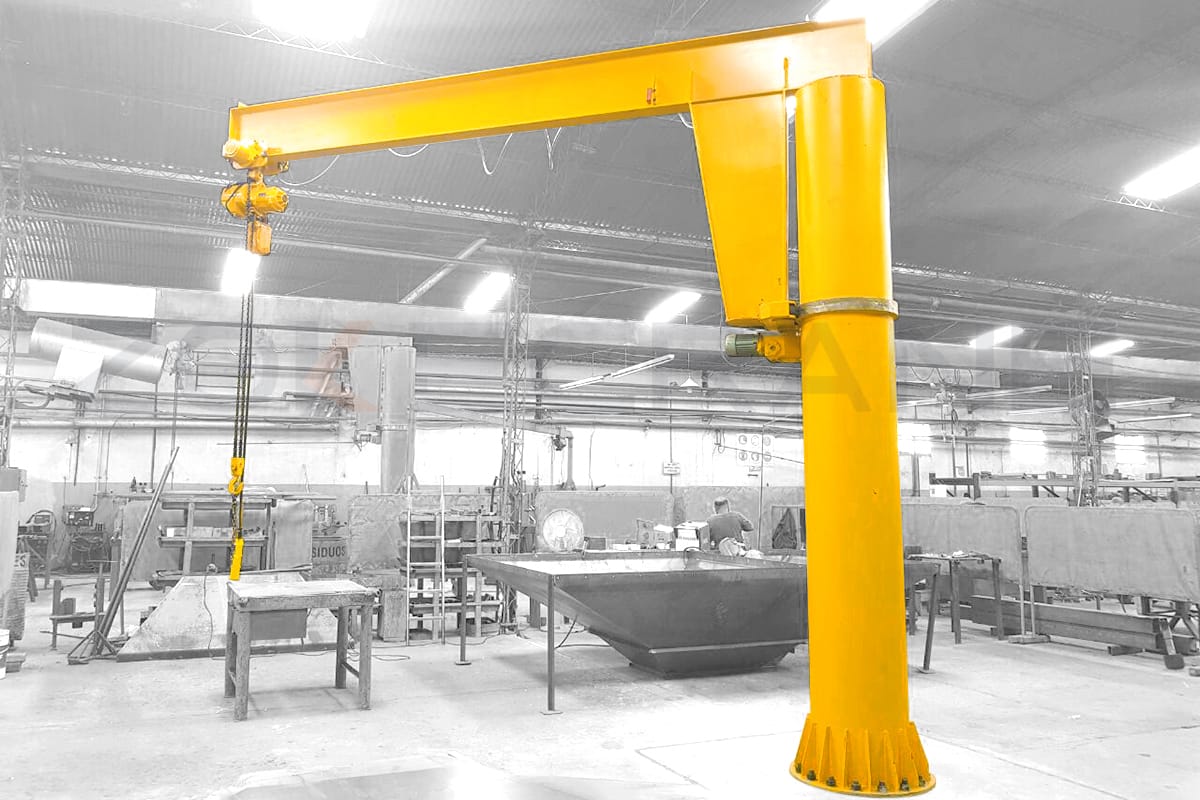

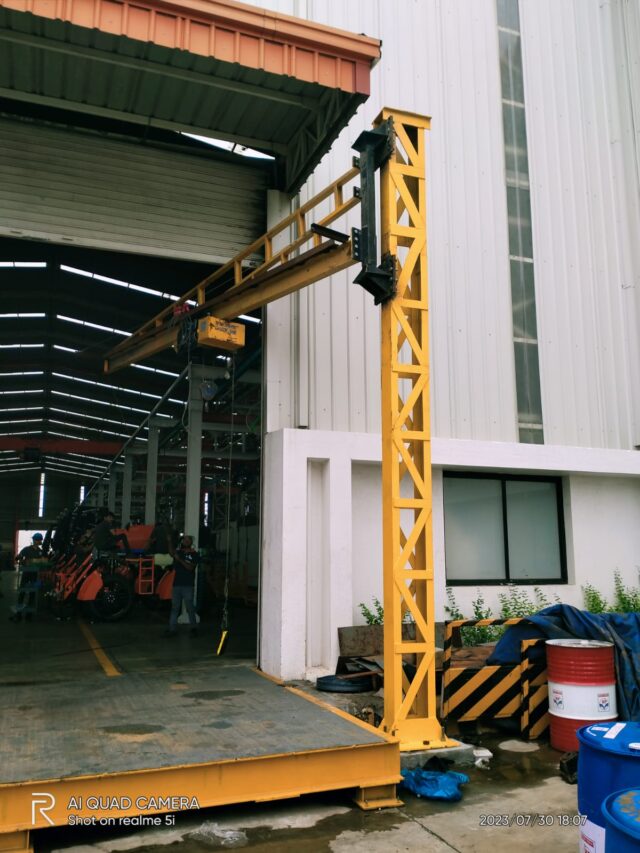

Jib cranes are fairly simple in design but can have capacities ranging anywhere from 250kg. to 5 tons in some applications. It consists of a pillar fixed to the wall or mounted on the floor. The pillar supports a horizontal jib or boom which has a movable hoist. The most commonly used jib crane is the self-supported, floor mounted type. Jib cranes are extremely important in all kind of lifting processes because it relieves the overhead crane of much work and reduces the waiting time. Jib Cranes with Electric Wire Rope Hoists are designed strictly in accordance for Light & Medium duty applications.

Best Mechanical Strength

Easy to Operate

High Qulity

Market Leading Product

Electric Wire Rope Hoist

Product Features

The Rope Hoists Frame is Fabricated from plates confirming to IS: 2062, GR.A, laser cut profile & duly finished in boring machine
The Rope Drum is made from seamless pipes / steel plate grooved to take full lift without over-winding.
The Drum Shaft has ball bearings to ensure smooth running with gears fitted on anti-friction ball bearings in oil bath lubrication.
The Motor S4, 150 Starts per hour, 40% CDF, crane duty Squirrel Cage motors as per IS: 325
The Wire Ropes are designed as per IS-2266 specifications.
The Forged Hooks abide to IS-15560 or equivalent.
The Rope Guides are attached to prolong rope life.
